| Specification | Value |
| Model | YX25-210-840 |
| Rib Height | 25 mm |
| Pitch | 210 mm |
| Effective Coverage Width | 840 mm |
| Unfolded Width | 1000 mm |
| Thickness | 0.4 – 0.8 mm |
| Application | Roof & Wall |
| Specification | Value |
| Model | YX15-225-900 |
| Rib Height | 15 mm |
| Pitch | 225 mm |
| Effective Coverage Width | 900 mm |
| Unfolded Width | 1000 mm |
| Thickness | 0.4 – 1.5 mm |
| Application | Roof & Wall |
| Specification | Value |
| Model | YX25-205-1025 |
| Rib Height | 25 mm |
| Pitch | 205 mm |
| Effective Coverage Width | 1025 mm |
| Unfolded Width | 1200 mm |
| Thickness | 0.6 – 0.8 mm |
| Application | Roof & Wall |
Product Overview
Pre-fabricated metal sheet profiles (commonly known as single panels) are widely used in steel structure buildings for roofing and wall cladding systems.
They are manufactured from high-quality galvanized or color-coated steel, offering excellent strength, corrosion resistance, and fast installation performance.

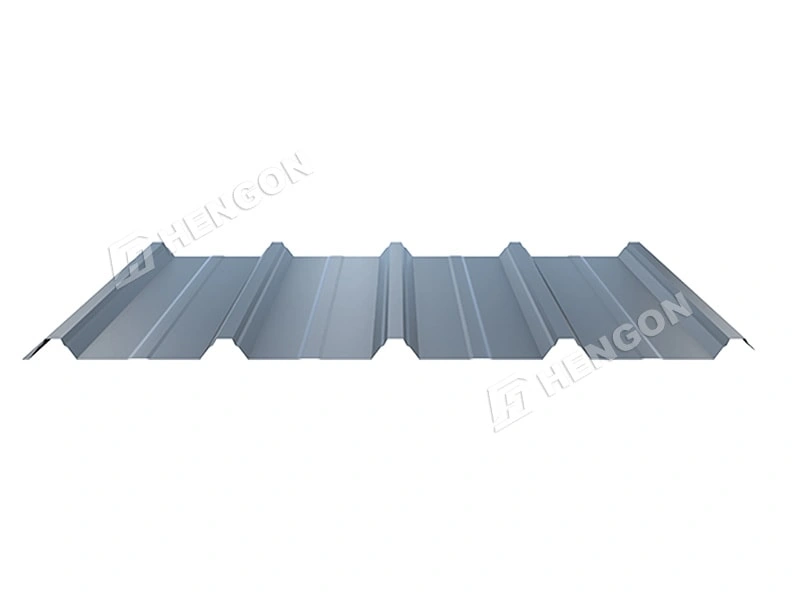

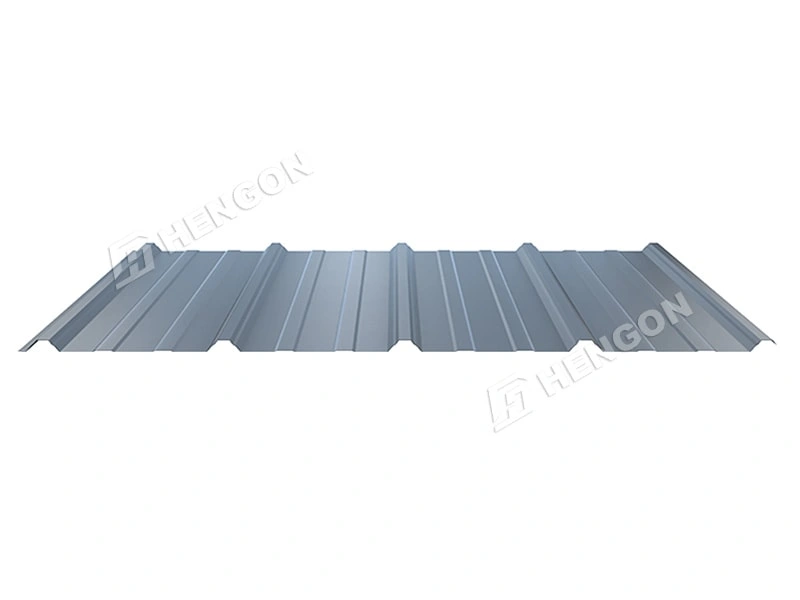

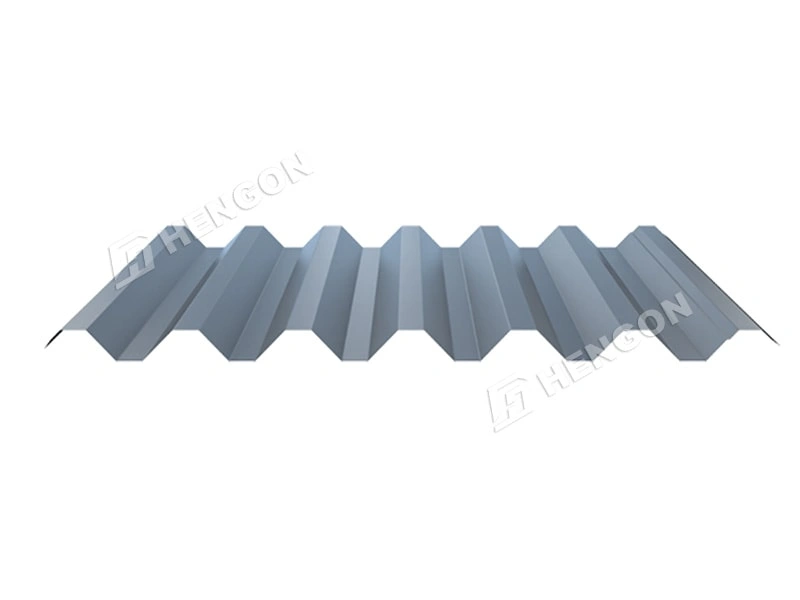

Product Types
We provide multiple profile options to meet different project requirements. Below are the most commonly used models:
Higher rib design for better drainage
Stronger load-bearing capacity
Ideal for roofing applications
Lightweight Structure
Reduces overall building load
High Strength
Excellent resistance to wind and external forces
Fast Installation
Prefabricated design saves labor and time
Corrosion Resistance
Suitable for various climates
Flexible Application
Widely used for industrial, commercial, and warehouse buildings
These metal sheets are widely used in:
Steel structure warehouses
Industrial workshops
Poultry farms
Commercial buildings
Temporary or modular buildings
We offer flexible customization based on project requirements:
Thickness
0.4–0.8 mm (up to 1.2 mm available)
Zinc Coating
Z30–Z275 g/m² for enhanced corrosion resistance
Color & Paint
RAL colors available
PE (15–25 μm) / PVDF (≥25 μm) / Back paint (5–10 μm)
Length
Custom cut to drawings with high precision
Material Options
Color coated / Galvanized / Alu-zinc (Galvalume)
Application Environments
Suitable for coastal, industrial, and high-humidity areas
