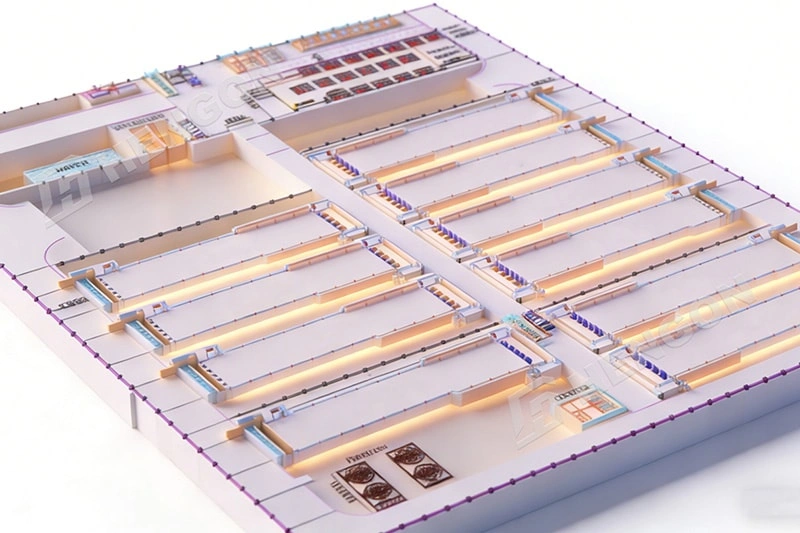

This project includes the construction of 7 layer chicken houses and 3 pullet houses in the Philippines, with our team providing both the steel structure poultry buildings and a complete automatic poultry equipment system.
| Project Information | |||||
| Country | Philippines | Year | 2022 | ||
| Equipments Info: | |||||
| Chicken type: | Layer | Dimension | 75mx12mxT5 | Capacity/birds: | 37440 |

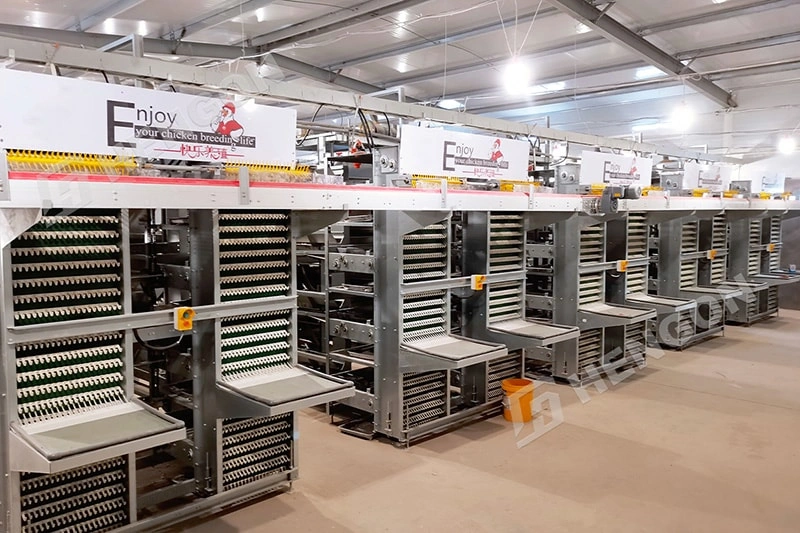

| Equipment Specifications: | five-tier and four-row, 52 sections/row (1.25 m per section) | ||||

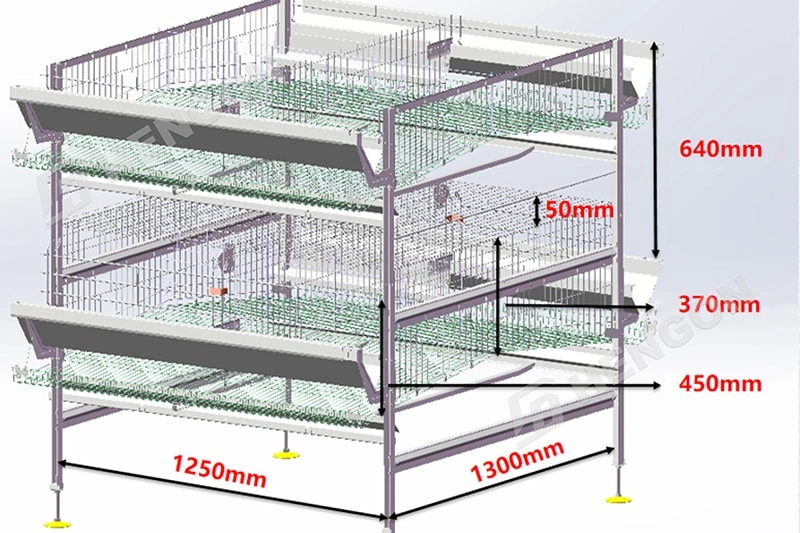

| Single Cage Dimensions | L1250mm × W1300mm (1680mm with trough) × H450mm (with top net) | ||||
| Section Dimensions | 1.250m × 1.680m × 2.700m | ||||
| Birds per Cage | 9 | Birds per Set | 360 | Feeding Area per Bird | 450 cm² |
| House Info: | |||||

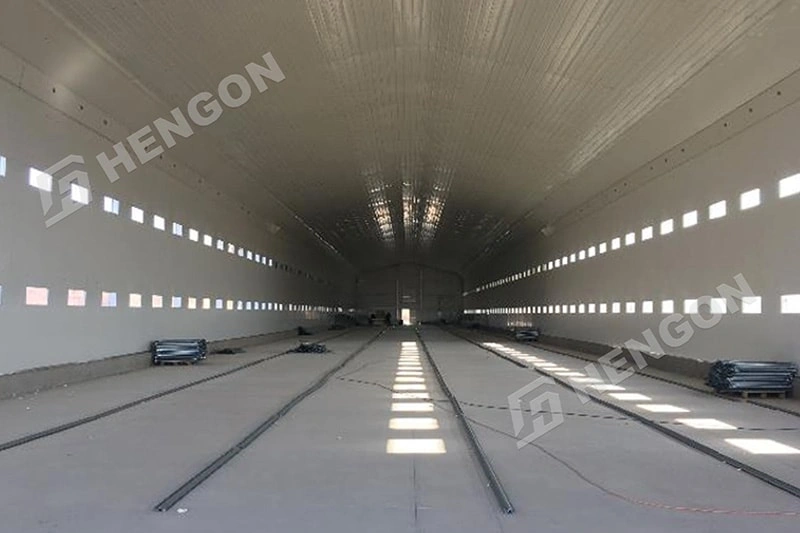

| Size | 75mx12mxH4.2m | Wind speed | 180km/h | Roof drainage | Gutter with downspout |
| Roofing | Single steel sheet (equipped with an internal ceiling) | Wall | Single steel sheet with fiberglass wool | ||
| Columns | Unexposed | Brick wall | 0.5m | Doors | Insulation door |
| |||||
