As a first-time poultry farmer, the client received full technical guidance, training support, and a cost-effective poultry house solution with reliable insulation and sealing performance. Based on mutual trust and project performance, the client plans to build up to 5 poultry houses within the next year, marking a long-term cooperation.
| Project Information | |||||
| Country | Philippines | Year | 2024 | ||
| Equipments Info: | |||||
| Chicken type: | Layer | Dimension | 100mx15mxT4 | Capacity/birds: | 51840 |
| Equipment Specifications: | four-tier and five-row, 72 sections/row (1.25 m per section) | ||||
| Single Cage Dimensions | L1250mm × W1300mm (1680mm with trough) × H450mm (with top net) | ||||
| Section Dimensions | 1.250m × 1.680m × 2.700m | ||||
| Birds per Cage | 9 | Birds per Set | 288 | Feeding Area per Bird | 450 cm² |
| House Info: | |||||
| Size | 110mx15mxH4m | Wind speed | 250km/h | Roof drainage | 1m eave overhang |
| Roofing | 0.4mm corrugated sheet +75mm fiber glass wool insulation+0.4mm corrugated sheet | Wall | 50mm EPS sandwich panel | ||
| Columns | Exposed | Brick wall | 0.5m | Doors | Insulation door |

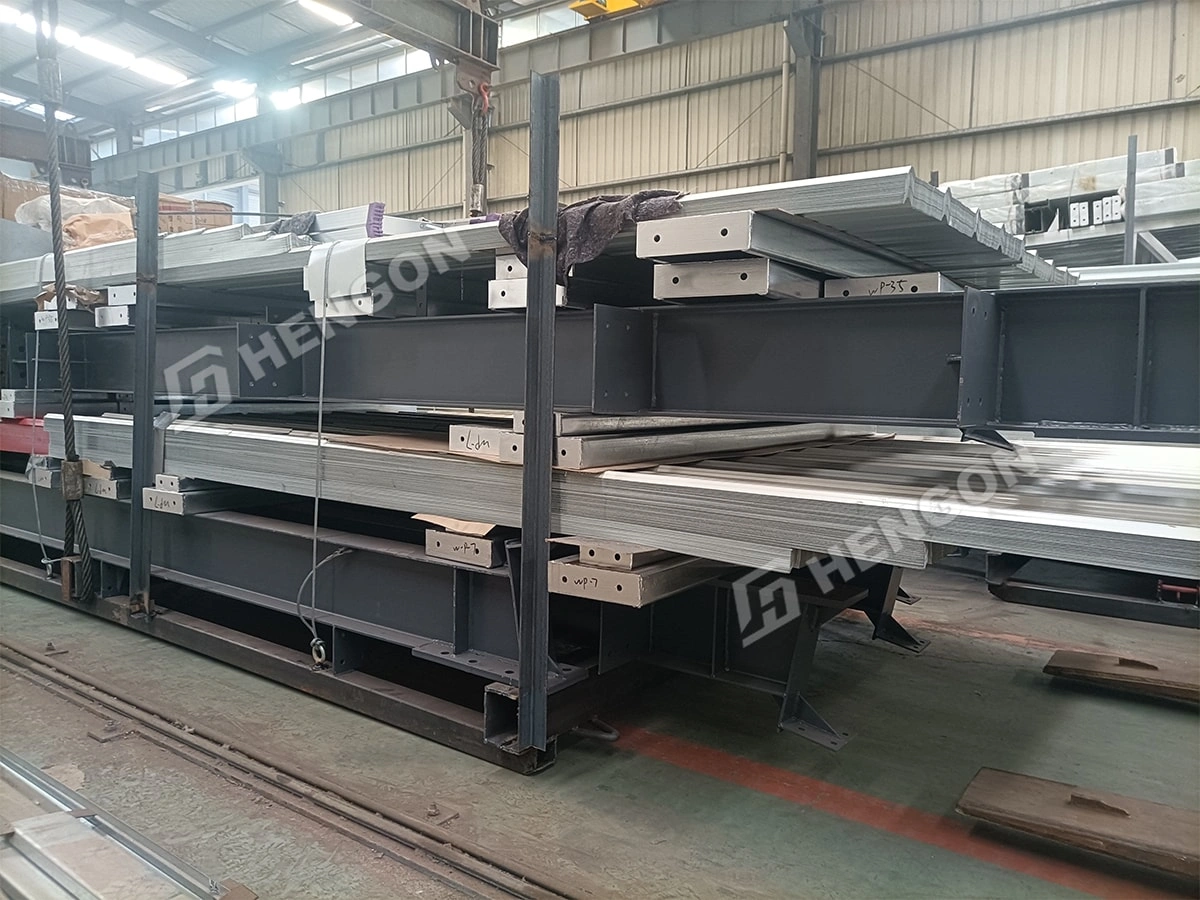

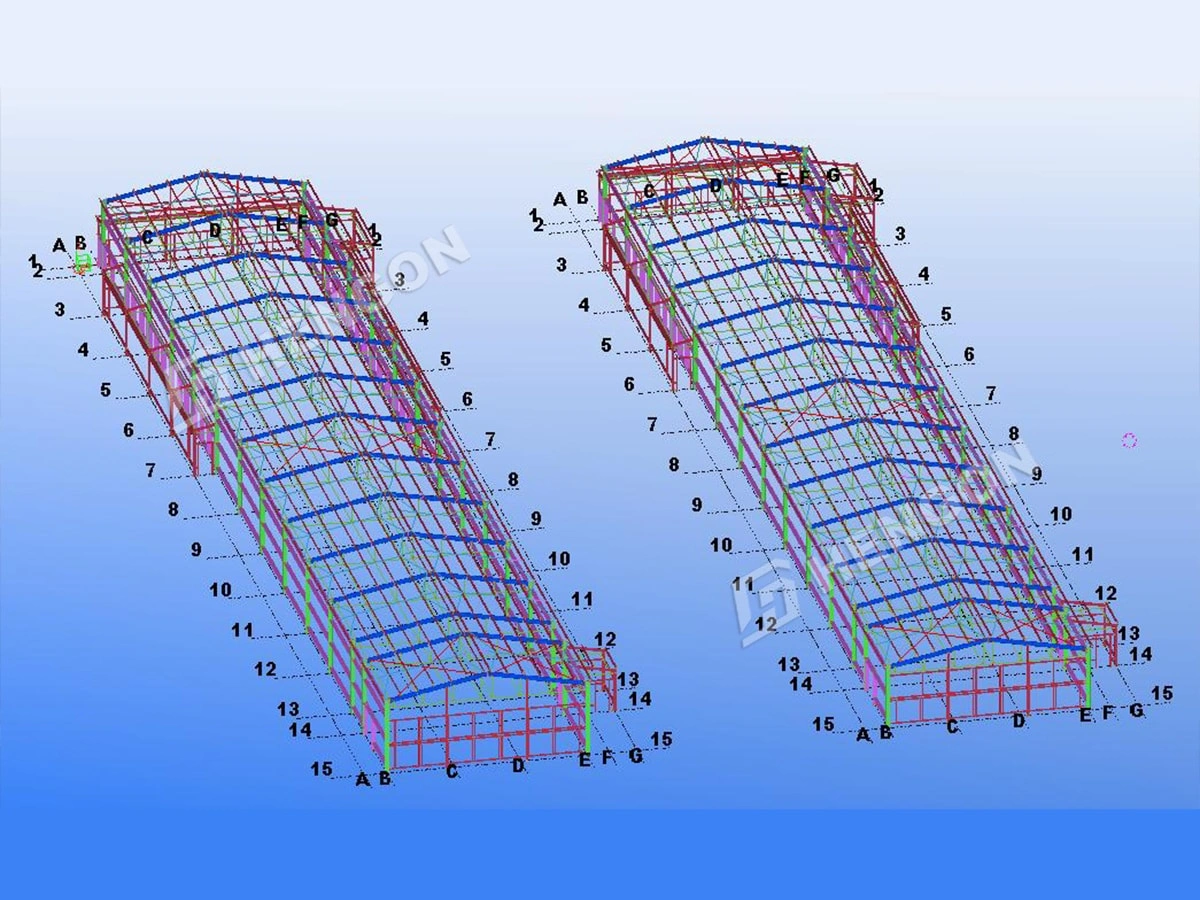

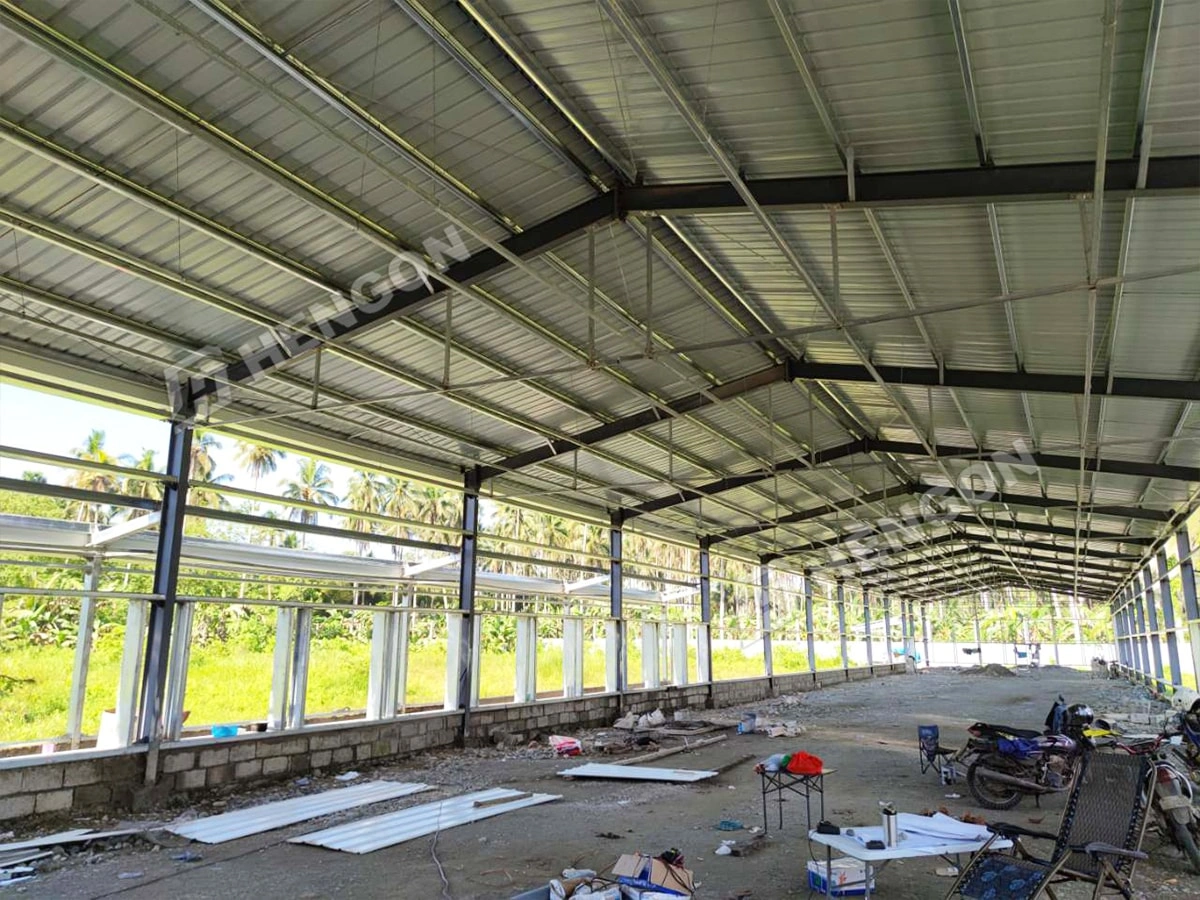

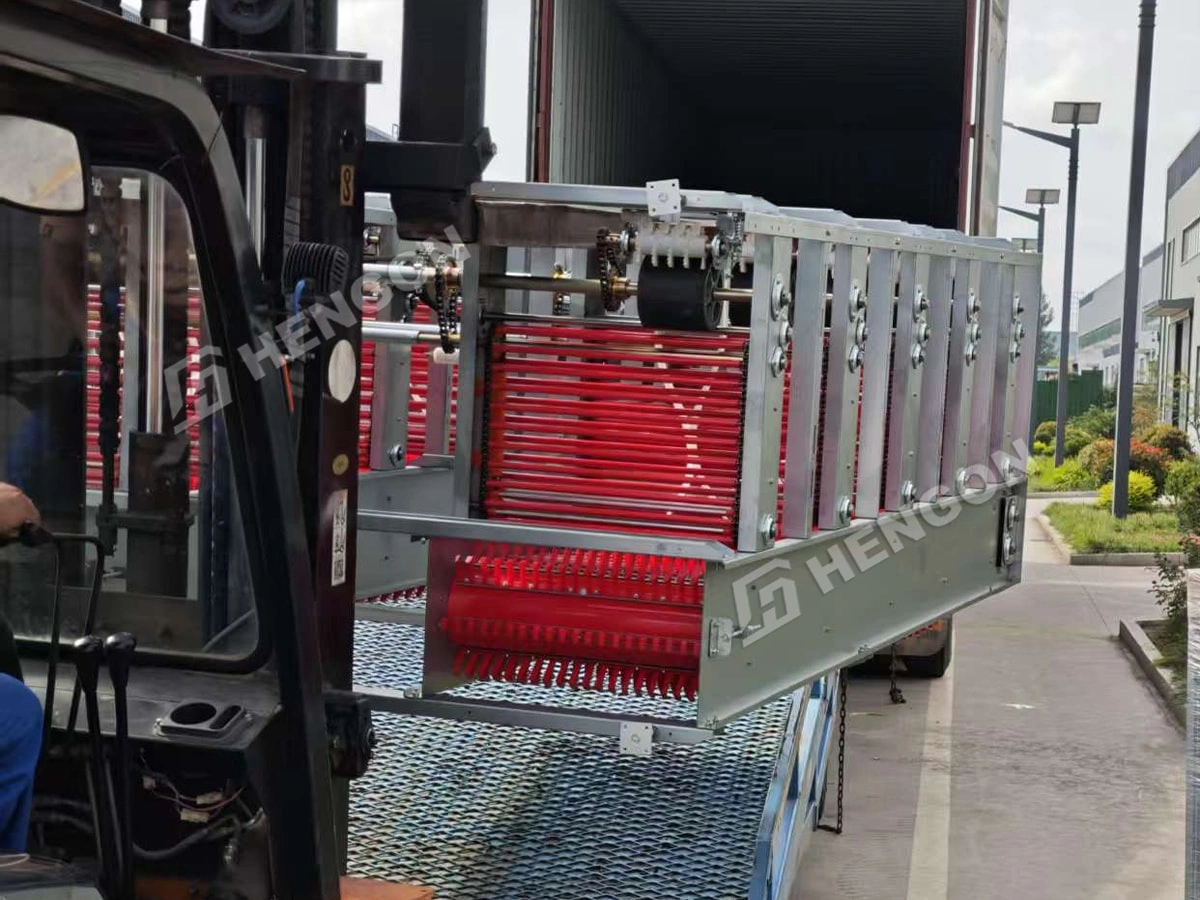

| Project Pictures | |||||
| |||||
