A professional poultry EPC contractor chose us over Vietnam suppliers for better cost, quality, and delivery, with optimized poultry house design finalized during the Philippines livestock expo.
| Project Information | |||||
| Company | Country | Philippines | Year | 2023 | |
| Equipments Info: | |||||
| Chicken type: | Broiler on ground | Dimension | 142m*16m*2.45m | Capacity/birds: | 44100 |
| feeding weight density(kg/m2) | 35 | Harevest Chicken weight(kg): | 2 | ||
| Number of feed lines ( lines): | 6 | Number of water lines ( lines): | 7 | ||

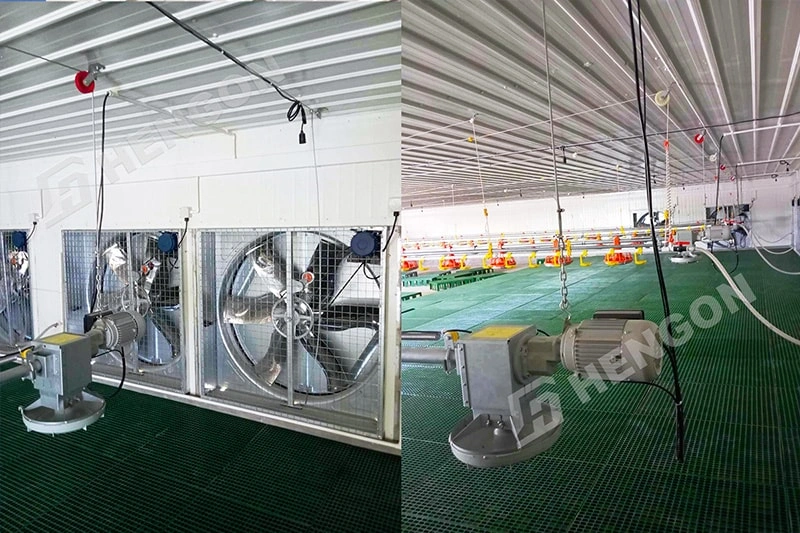

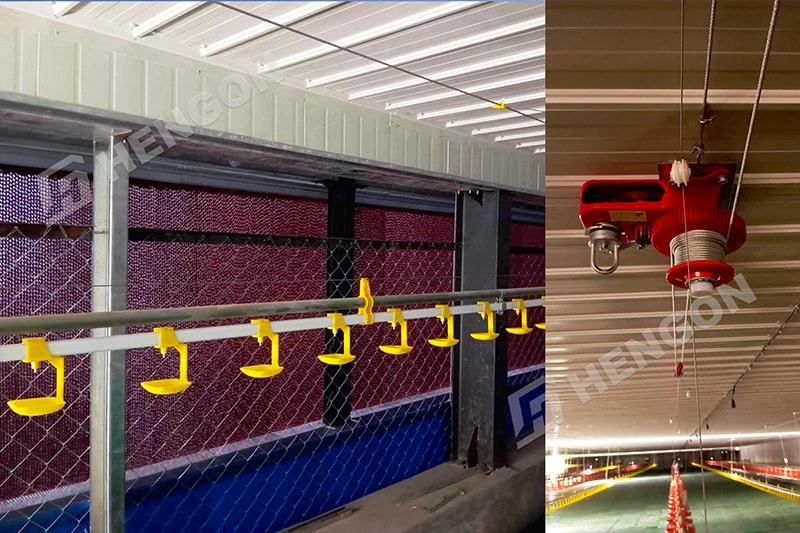

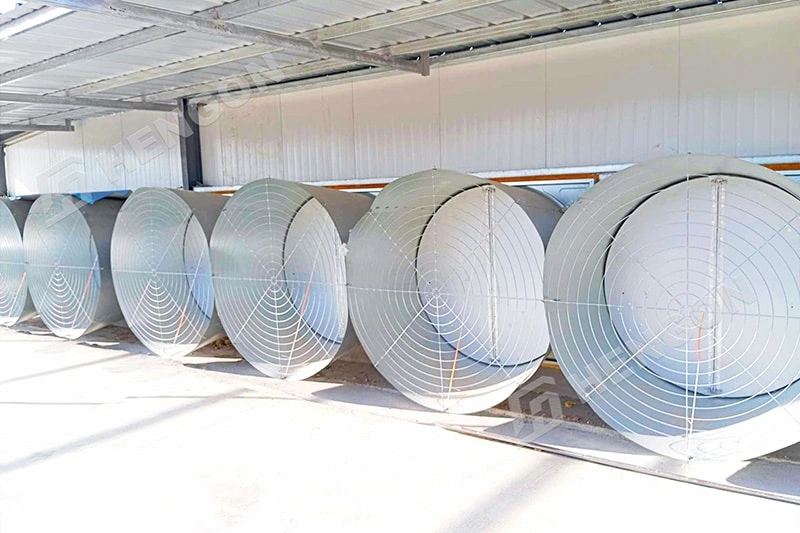

| Including: | 1,Main feed line conveying system 2, Silo System 3, Secondary feed line conveyor system 4, Drinking System 5, Fan System 6, Cooling Pad System 7, Lighting control system 8, Control System 9,Heating systems | ||||
| House Info: | |||||

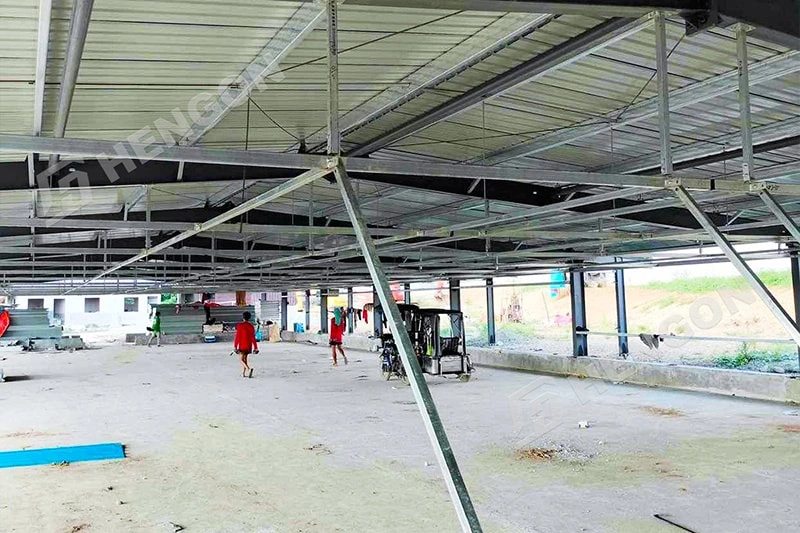

| Size | 142mx16mxH4.2m | Wind speed | 250km/h | Roofing | 0.4mm corrugated sheet |
| Structure | H&I steel | Paint | Alykd paint | Purline | C purline |
| Ceiling | 0.4mm corrugated sheet+100mm fiber glass wool insulation | Wall | 50mm EPS sandwich panel | Brick wall | 0.5m |
| Columns | Exposed | Roof drainage | 1m eave overhang | Doors | Insulation door |
| |||||
